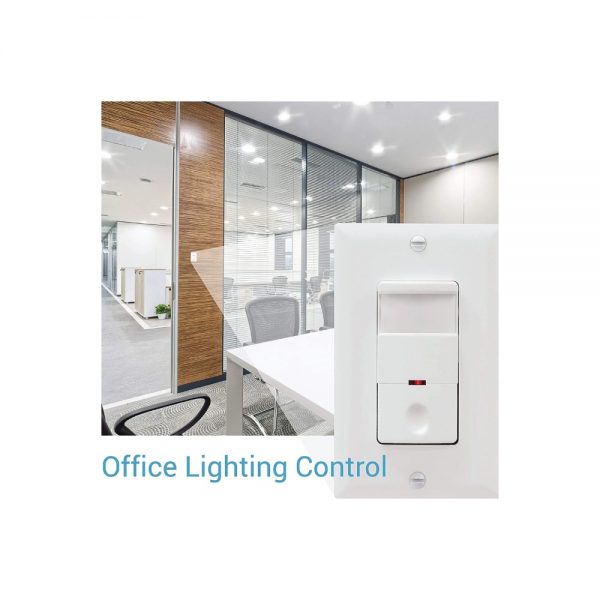

DWOS-J PIR Sensor Single Pole No Neutral Wire Required


  • Automatically on/off, manual on/automatically off
  • DWOS-J built-in OCC/VAC slide button offers manual on or auto on models
  • DWOS-J auto mode includes “walk-through” sensing mode which increases energy savings by turning light “off” shortly after momentary occupancy
  • Self Adaptive feature automatically adjusts time delay based on occupants behavior patterns
  • No neutral required which can be installed in both old and new houses
  • Latching relay allows sensor to work at low power – Single Pole feed & Single output
  • Relay switches at zero crossing point of the AC power curve to ensure maximum contact life – Adjustable sensitivity settings
  • Compatible with all kinds of load including electronic ballast
  • Conforms to California Title 24 Requirements
  • Three years warranty.


  • Input Voltage: 120/277VAC Single Pole, Decorator Wall Switch PIR Occupancy Sensor Secured Ground Wire Required
  • RATING: Incandescent: 800W @ 120VAC Fluorescent: 800VA @ 120VAC 1600VA @ 277VAC Motor: 1/4HP @ 120VAC LED: 100W


  • Bedrooms
  • Bathrooms
  • Laundry Rooms
  • Closets
  • Garages
  • Kitchens
  • Home Offices
