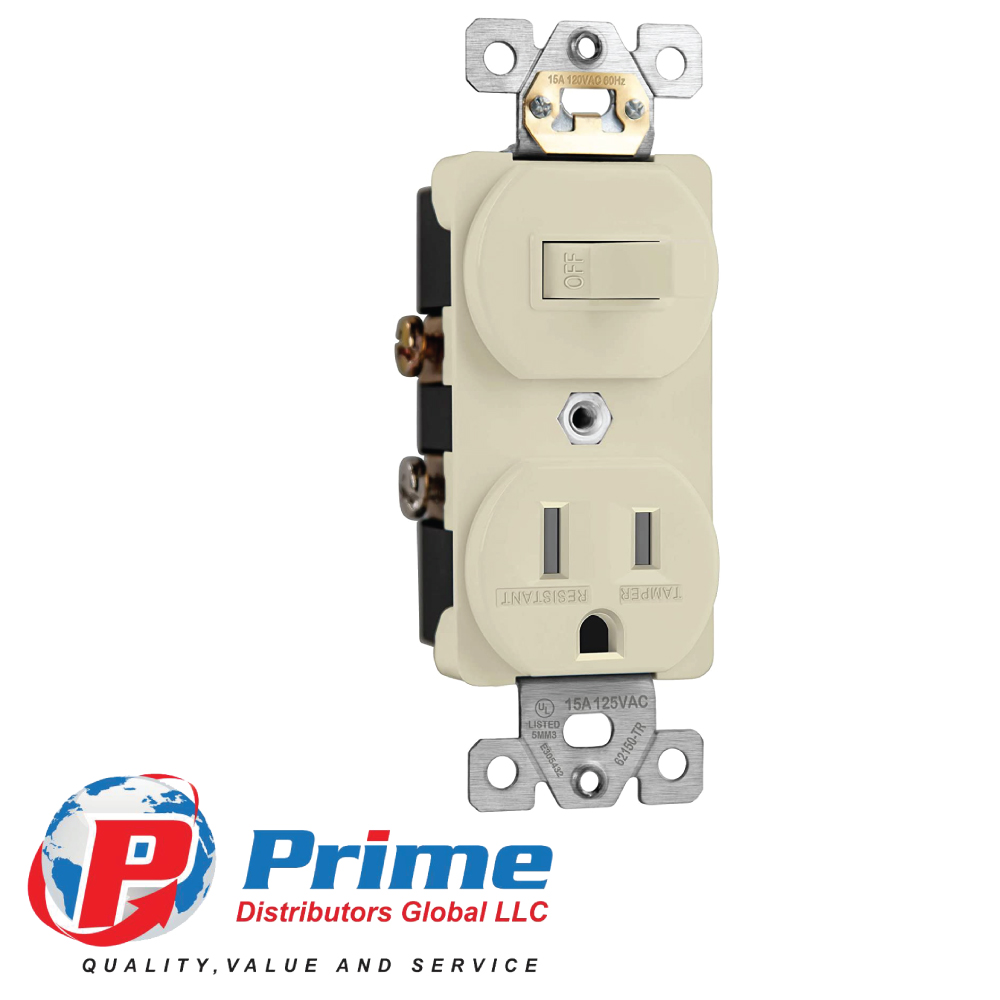

SINGLE POLE TOGGLE RECEPTACLE SWITCH


  • AC Combination
  • 15A – 125V
  • Extra-long, through-body strap eliminates floating installations and imperfect applications
  • Heavy-duty impact-resistant thermoplastic construction for long service life
  • Back and side-wiring terminals accept both solid and stranded wire to ease installation
  • Smooth, quiet paddle and toggle action
  • Narrow back body leaves more room for wires in the box
  • Tri-Drive ground, terminal and mounting screws ease installation
  • Terminal screw backed out ready for wiring
  • Limited Two-Year Warranty

MATERIAL CHARACTERISTICS

  • Environmental: Flammability, UL-94, Rated V0
  • Operating Temperature: -40° F to 149°F (-40° C to 65° C)

Description

  • Color: IVORY
  • Receptacle Amperage: 15 Amp
  • Receptacle Voltage: 125V AC
  • Switch Amperage: 15 Amp
  • Switch Voltage: 120V AC
  • Grounding: Grounding
  • Termination: Side
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Face Material: Thermoplastic PC
  • Body Material: Thermoplastic Nylon
SKU: 5225V Category:
color

Ivory
